| Heater KW: | 2 | Capacity M3/min (scfm: | 4.2 (150) |
|---|---|---|---|
| Length X Width X Height Mm (in): | 813 (32.0) X 1,130 (44.5) X 1,676 (66.0) | Weight Kg (lb): | 344 (758) |
| Connection Air In/Out: | 1" NPT | ||
| Highlight: | Heated Cycling Refrigerated Dryers,Cycling Refrigerated Dryers 150 CFM,8000 CFM Heated Desiccant Dryers |
||

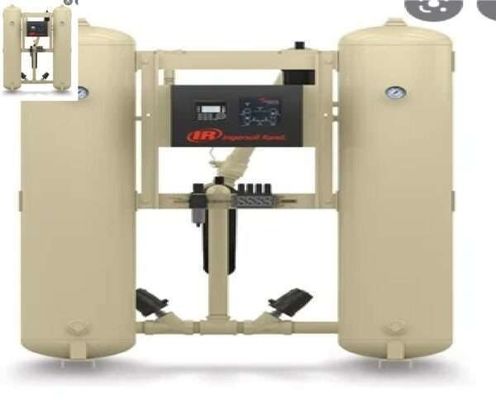

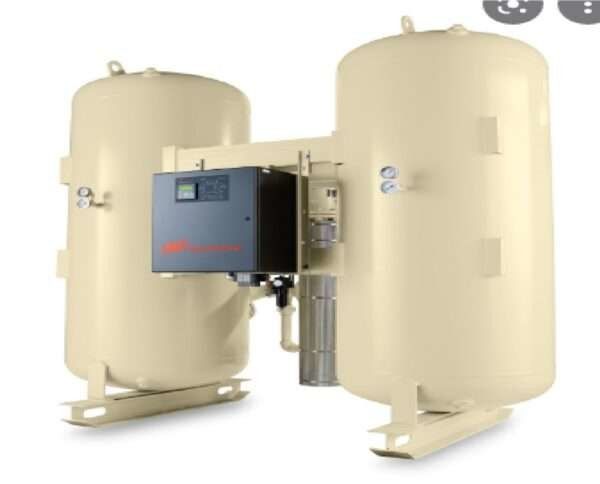

Product description: Externally Heated Desiccant Dryers 4.2-226 m3/min, 150-8,000 cfm
Capacity Range: 400-2100 cfm (11.3-59.5 m3/min) Pressure Dew Point: -40°F to -100°F (-40°C to -70°C) ISO Class 1 to 2 Voltage: 460V/3PH/60HZ (400V/3PH/50HZ) Maximum Inlet Pressure: 150 psig (10.3 barg) Maximum Inlet Temperature: 122°F (50°C) Desiccant Type: Activated alumina
Features:
| Model | Capacity m3/min (scfm) | Heater kW | Length x Width x Height mm (in) | Weight kg (lb) | Connection Air In/Out | ||
| EH150 | 4.2 (150) | 2 | 813 (32.0) x 1,130 (44.5) x 1,676 (66.0) | 344 (758) | 1" NPT | ||
| EH200 | 5.7 (200) | 3 | 813 (32.0) x 1,232 (48.5) x 1,702 (67.0) | 414 (913) | 1 1/2" NPT | ||
| EH250 | 7.1 (250) | 3 | 889 (35.0) x 1,334 (52.5) x 1,727 (68.0) | 508 (1,119) | 1 1/2" NPT | ||
| EH300 | 8.5 (300) | 3 | 889 (35.0) x 1,334 (52.5) x 1,727 (68.0 | 540 (1,191) | 1 1/2" NPT |
