| Material:: | Aluminum Alloy | Model:: | GA 90 |
|---|---|---|---|
| Power:: | 90kw | Brand:: | Atlas Copco |
| Type:: | Oil-injected | System: | SIL Smart Inlet Lock System |
| Highlight: | Durable Oil Injected Compressor,50Hz Oil Injected Compressor,Aluminum Alloy GA 90 Air Compressor |
||

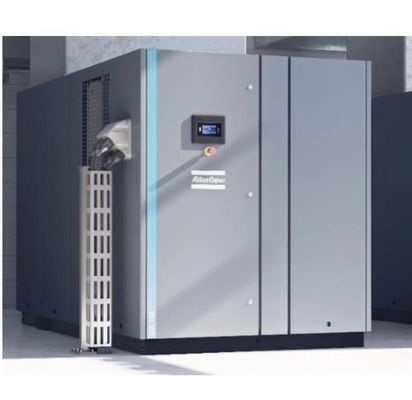

Aluminum Alloy GA 90 Atlas Copco 50Hz With SIL Smart Inlet Lock System
SPECIFICATIONS
| COMPRESSOR TYPE |
Pressure variant | Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** | Weight WorkPlace | Weight WorkPlace Full Feature |
||||||
| bar(e) | psig | l/s | m³/min | cfm | kW | hp | dB(A) | kg | lbs | kg | lbs | ||
| GA 90 | 7.5 | 7.5 | 109 | 281 | 16.9 | 596 | 90 | 125 | 73 | 1525 | 3355 | 1645 | 3619 |
| 8.5 | 8.5 | 123 | 275 | 16.5 | 582 | 90 | 125 | 73 | 1525 | 3355 | 1645 | 3619 | |
| 10.5 | 10.5 | 145 | 250 | 15 | 529 | 90 | 125 | 73 | 1525 | 3355 | 1645 | 3619 | |
| 13 | 13 | 189 | 216 | 13 | 458 | 90 | 125 | 73 | 1525 | 3355 | 1645 | 3619 | |
Lowest lifecycle costs and peace of mind
• No extra installation costs.
• Saving floor space.
• Use of energy-efficient, environmentally friendly refrigerant R410A reduces operating costs and stands for zero ozone depletion.
• Heat exchanger cross-flow technology with low pressure drop,saving energy and costs.
• Zero waste of compressed air thanks to no-loss condensate drain.
• Advanced control functions ensure dry air under all circumstances and prevent freezing at low load.
• Pressure dew point of 3°C (100% relative humidity at 20°C).
1. Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.
2. IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.
3. Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.
4. Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime:• Removal of nearly 100% condensate by mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.
5. Advanced control & monitoring via Elektronikon®
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications,maintenance scheduling and online visualization of machine’s condition.
6. Heavy-duty air intake filter
• Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.
7. Electronic no-loss water drain(optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm features.
8. Radial fan
• Low noise level.
• High flows.
• Compact design.
9. Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD+ filter according to Class 1.4.2.
